OWS Database Documentation¶
Table of Contents
Datacube OWS uses three groups of database entities:
Database relationship diagram¶

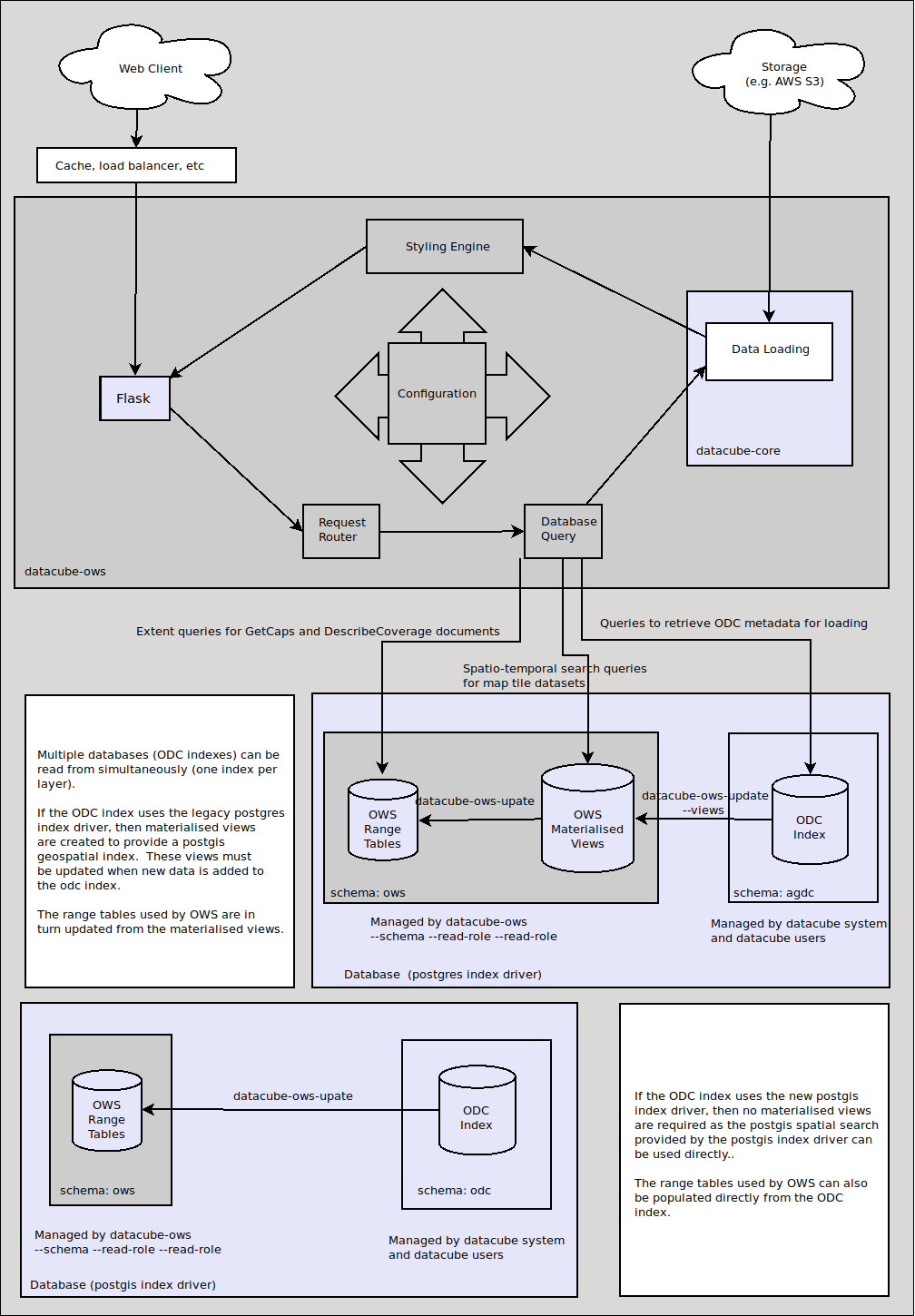

Current database relationship diagram¶
Open Data Cube Native Entities¶
The core of the Datacube-OWS application database is the agdc schema see:
Open Data Cube.
This schema is created and maintained with the datacube command.
OWS only needs read access to this schema.
Materialised Views over ODC Indexes¶
The materialised views provide a dataset level extent index using PostGIS datatypes.
These views are used only as an intermediate calculation step to populate the Layer Extent Cache, as described below, and for doing dataset queries for GetMap, GetFeatureInfo and GetCoverage requests.
It is hoped that this layer will eventually be implemented as tables
maintained as part of the core ODC index. Currently it must be
maintained separately using the datacube-ows-update (update_ranges))
command.
Creating Materialised Views¶
The materialised views are created (along with the range tables,
as described below) with the --schema flag:
datacube-ows-update --schema --role rolename
where rolename is the name of the database role that the OWS server
instance will use.
Refreshing Materialised Views¶
As datasets are added into or archived out of the ODC database,
the materialised views become stale, and need to be periodically
manually refreshed, with the --view flag.
datacube-ows-update --view
A lot of the speed of OWS comes from pushing expensive database calculations down into these materialised views, and refreshing them is slow and computationally expensive. Large, constantly updating databases will unavoidably have some delay in the availability of the latest data.
Note that the last step of the view refresh (joining the time
and space views into a single space-time view) is done
CONCURRENTLY. This means that it may not take effect until
some minutes after datacube-ows-update exits.
DO NOT ATTEMPT TO REFRESH VIEWS NON-CONCURRENTLY IN A PRODUCTION ENVIRONMENT. This will leave OWS broken and unable to respond to requests until the refresh is complete.
In a production environment you should not be refreshing views much more than 3 or 4 times a day unless your database is very small.
Range Tables (Layer Extent Cache)¶
Range tables serve as a cache of full-layer spatio-temporal extents
for generating GetCapabilities documents efficiently. They are
maintained with the datacube-ows-update (update_ranges.py)
command.
The range tables are created at the same time as the materialised
views using the --schema flag,
as described above.
Updating range tables¶
The range tables are updated from the materialised views by simply calling:
datacube-ows-update
Note that this operation is very fast and computationally light compared to refreshing the materialised views.
Updating range tables for individual layers¶
Specific layers can be updated using:
datacube-ows-update layer1 layer2 layer3
(You can use OWS layer names or ODC product names here, but OWS layer names are generally preferred).
